Integrated desktop CNC cutting machine combining high-speed plasma and flame cutting. Features a compact structure with a water table or exhaust dust removal system. Available in cutting sizes from 1.3×2.5m to 1.8×4.0m.
CNC Plasma & Flame Cutting Machines
Table CNC Flame Plasma Cutting Machine
CUTTING: 1300*2500mm - 1800*4000mm
POWER: 1200W-2000W
TECHNICAL SPECIFICATIONS
PRECISION ENGINEERED
Detailed technical specifications and performance parameters for professional evaluation and comparison.
| SPECIFICATION | MODEL 1 | MODEL 2 | MODEL 3 |
|---|---|---|---|
| Model | TNC-1325 | TNC-1530 | TNC-1840 |
| Effective Cutting Range | 1300*2500 mm | 1500*3000 mm | 1800*4000 mm |
| Equipment Size (W*L) | 1900*3500 mm | 2100*4000 mm | 2300*5000 mm |
| Input Power | Stepping (1200W) / Servo (2000W) | Stepping (1200W) / Servo (2000W) | Stepping (1200W) / Servo (2000W) |
| Cutting Speed | 20-6000 mm/min | 20-6000 mm/min | 20-6000 mm/min |
| Running Speed | 0-10000 mm/min | 0-10000 mm/min | 0-10000 mm/min |
| Plate Thickness | Flame 6-150mm / Plasma (Depends on Power) | Flame 6-150mm / Plasma (Depends on Power) | Flame 6-150mm / Plasma (Depends on Power) |
| Torches | Plasma 1 set / Flame 1 set | Plasma 1 set / Flame 1 set | Plasma 1 set / Flame 1 set |
| Drive Type | Bilateral drivers (Gear rack) | Bilateral drivers (Gear rack) | Bilateral drivers (Gear rack) |
| Lift Stroke | 200 mm | 200 mm | 200 mm |
| Machine Bare Size | 3500*1700*1600 | 4000*2000*1600 | 5000*2300*1600 |
| Cutting Platform | Water table / Exhaust dust (Optional) | Water table / Exhaust dust (Optional) | Water table / Exhaust dust (Optional) |
KEY FEATURES
-
Dual Cutting Modes: Supports both Plasma cutting (with matching power supply) and Flame cutting, or a combination of both.
-
Customizable Size: Longitudinal length (Y-axis) can be increased or shortened according to user requirements.
-
High Precision System: Uses Shanghai Jiaotong University CNC system with a 10-inch industrial control screen.
-
Robust Drive: Bilateral gear rack drive with standard 86 series stepping motors (Servo motors optional) ensures stable operation.
-
Advanced Features: Includes lifting pipeline tow chain and tool set. Supports optional Flame Capacitance or Plasma Arc Voltage height control.

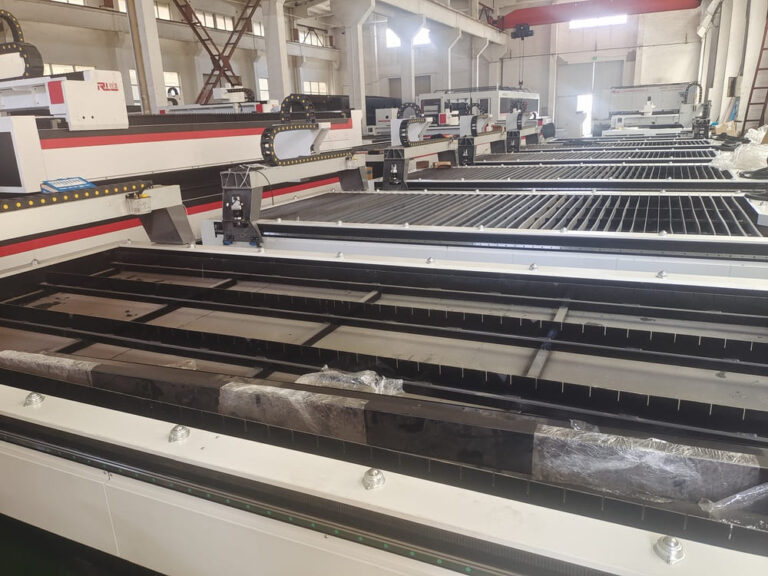

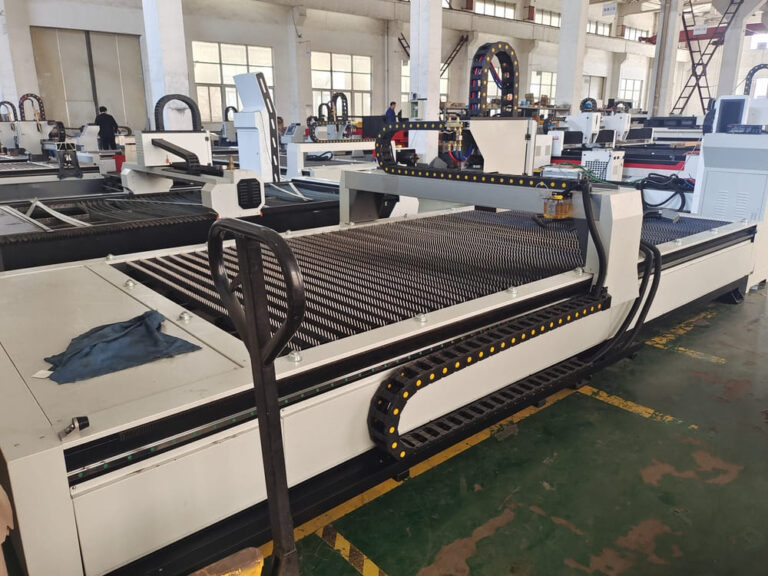

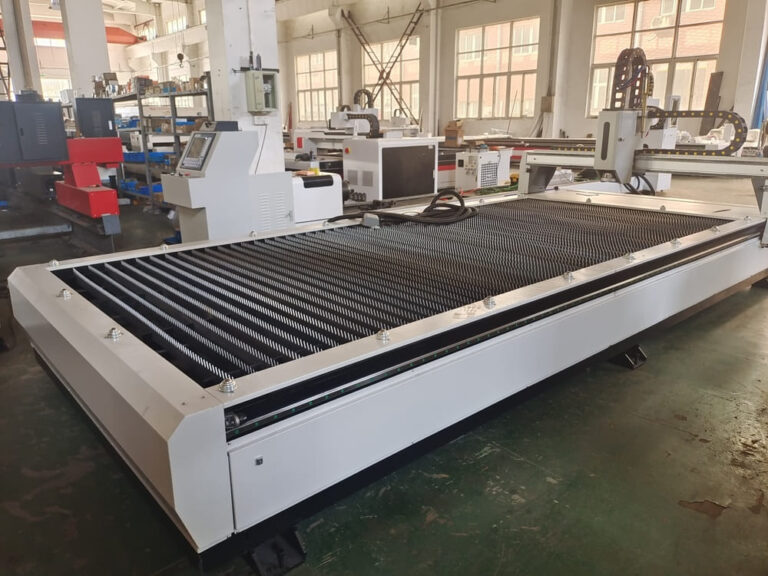

PRODUCT GALLERY
VISUAL SHOWCASE
Detailed images showcasing design, construction quality, and operational features.
