Heavy-duty standard gantry CNC cutting machine designed for industrial mass production. Comes standard with 2 moving bodies for higher efficiency. Capable of cutting thicker plates (up to 250mm with flame) and features a stable bilateral drive system.
CNC Plasma & Flame Cutting Machines

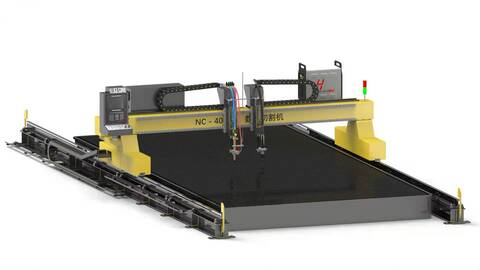

Standard Gantry CNC Plasma/Flame Cutting Machine
CUTTING: 2200*6500mm - 3200*6500mm
POWER: 2000W
TECHNICAL SPECIFICATIONS
PRECISION ENGINEERED
Detailed technical specifications and performance parameters for professional evaluation and comparison.
| SPECIFICATION | MODEL 1 | MODEL 2 | MODEL 3 |
|---|---|---|---|
| Model | NC-3000 | NC-3500 | NC-4000 |
| Effective Cutting Range | 2200*6500 mm | 2700*6500 mm | 3200*6500 mm |
| CNC Span | 3000 mm | 3500 mm | 4000 mm |
| CNC Length | 8000 mm | 8000 mm | 8000 mm |
| Moving Bodies | 2 sets | 2 sets | 2 sets |
| Plate Thickness | Flame 6-250mm / Plasma (Depends on Power) | Flame 6-250mm / Plasma (Depends on Power) | Flame 6-250mm / Plasma (Depends on Power) |
| Cutting Speed | 20-8000 mm/min | 20-8000 mm/min | 20-8000 mm/min |
| Idle Speed | 0-10000 mm/min | 0-10000 mm/min | 0-10000 mm/min |
| Drive Type | Bilateral drivers (Gear rack) | Bilateral drivers (Gear rack) | Bilateral drivers (Gear rack) |
| Lift Stroke | 200 mm | 200 mm | 200 mm |
| Machine Bare Size | 3800*1500*1400 | 4300*1500*1400 | 4800*1500*1400 |
| Motor Type | Stepping + reducer (Servo Optional) | Stepping + reducer (Servo Optional) | Stepping + reducer (Servo Optional) |
KEY FEATURES
-
Dual Moving Bodies: Comes standard with 2 sets of moving bodies (Plasma 1 set, Flame 1 set) to maximize production efficiency.
-
Heavy Plate Capacity: Capable of flame cutting carbon steel plates up to 250mm thick.
-
Customizable Structure: Longmen transverse and longitudinal length can be increased or shortened according to user requirements.
-
Stable Drive: Features bilateral gear rack drive with standard 86 series stepping motors and reducers (optional Servo motors).
-
Professional CNC: Shanghai Jiaotong University CNC system with a 10-inch industrial control screen ensuring precise operation.
-
Complete Package: Includes lifting pipeline tow chain, tool set, and standard FASTCAM/starCAM nesting software.

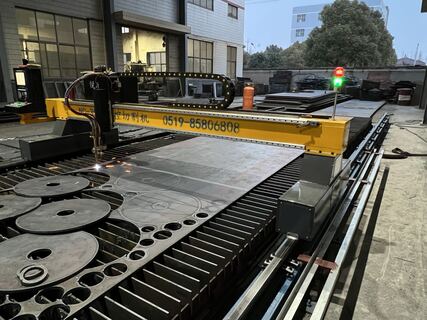

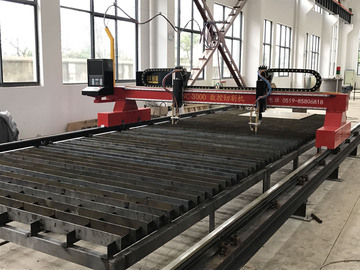

PRODUCT GALLERY
VISUAL SHOWCASE
Detailed images showcasing design, construction quality, and operational features.
