Open-type single platform fiber laser cutter. Cost-effective solution for precision metal sheet cutting. Available in cutting areas from 3×1.5m to 6x2m.
Fiber Laser Cutting Machines

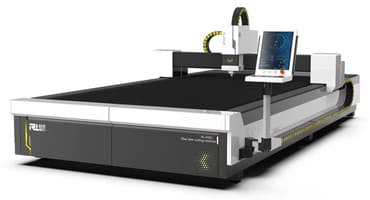

Single Platform Fiber Laser Cutting Machine
CUTTING: 1500*3000mm - 2000*6000mm
POWER: 1500W - 6000W
TECHNICAL SPECIFICATIONS
PRECISION ENGINEERED
Detailed technical specifications and performance parameters for professional evaluation and comparison.
| SPECIFICATION | MODEL 1 | MODEL 2 | MODEL 3 |
|---|---|---|---|
| Model | RL3015-SJ | RL4020-SJ | RL6020-SJ |
| Cutting Range | 1500mm*3000mm | 2000mm*4000mm | 2000mm*6000mm |
| Power Range | 1500W-6000W | 1500W-6000W | 1500W-6000W |
| Positioning Accuracy | ± 0.03mm/m | ± 0.03mm/m | ± 0.03mm/m |
| Repositioning Accuracy | ± 0.03mm | ± 0.03mm | ± 0.03mm |
| Max Acceleration | 60m/min | 60m/min | 60m/min |
| Power Demand | 380V 50Hz/60Hz | 380V 50Hz/60Hz | 380V 50Hz/60Hz |
| Floor Space | 5000*2600*2000mm | 6000*3100*2000mm | 8000*3100*2000mm |
| Exchange Form | None (Optional) | None (Optional) | None (Optional) |
| Max Gas Pressure | 1.6 MPa | 1.6 MPa | 1.6 MPa |
KEY FEATURES
-
Cost-Effective: Economical open-type design, perfect for entry-level laser cutting.
-
High Precision: Aviation aluminum gantry ensures high speed and high precision cutting.
-
Stable Structure: Heavy-duty welded bed with annealing treatment for long-term stability.
-
Easy Operation: User-friendly CNC system, supports various graphic formats.

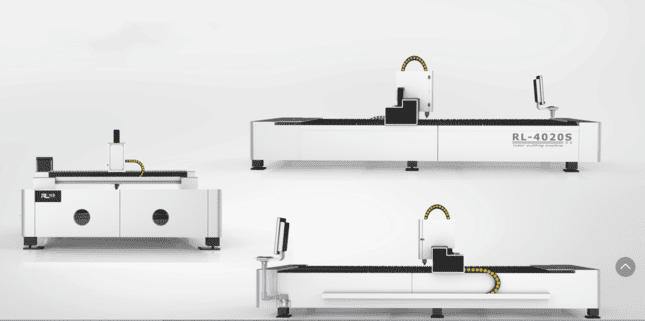

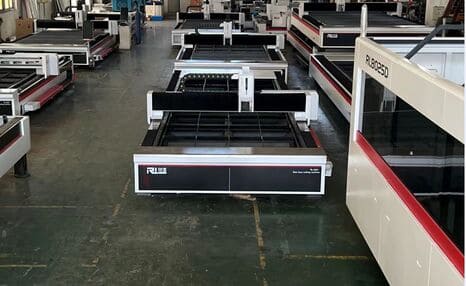

PRODUCT GALLERY
VISUAL SHOWCASE
Detailed images showcasing design, construction quality, and operational features.
RELATED PRODUCTS
EXPLORE MORE SOLUTIONS
Discover other cutting-edge products in the same category designed for your industrial needs.
Fiber Laser Cutting Machines
Fiber Laser Tube Cutting Machine
Professional CNC fiber laser tube cutting machine. Highly customizable with various chuck diameters (20mm-360mm) and...
VIEW DETAILS →
Tube Length: 4m-12m / Dia: 20-360mm
Fiber Laser Cutting Machines

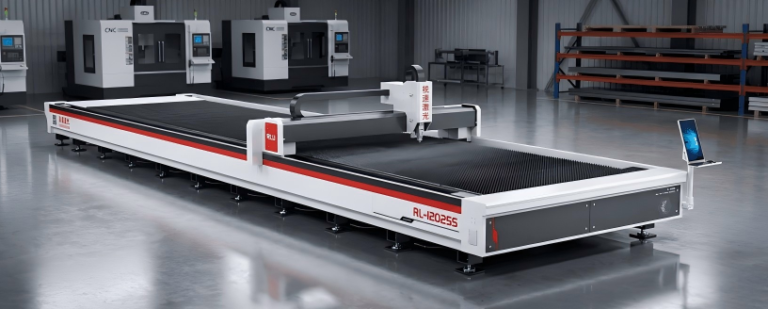

Large Format Ground Rail Fiber Laser Cutting Machine
