Compact and portable CNC cutting solution. Supports both flame and plasma cutting modes. Ideal for small workshops or on-site processing. Features a customizable rail length and lightweight design for easy transportation.
CNC Plasma & Flame Cutting Machines
Portable NC Flame/Plasma Cutting Machine
CUTTING: 1500*2500mm - 1500*3500mm
POWER: 350W / AC 220V
TECHNICAL SPECIFICATIONS
PRECISION ENGINEERED
Detailed technical specifications and performance parameters for professional evaluation and comparison.
| SPECIFICATION | MODEL 1 | MODEL 2 | MODEL 3 |
|---|---|---|---|
| Model | YH-1525 | YH-1530 | YH-1535 |
| Cutting Range | 1500*2500mm | 1500*3000mm | 1500*3500mm |
| Machine Size | 2050*3000*600 | 2050*3500*600 | 2050*4000*600 |
| Rail Supports | 2 units | 2 units | 2 units |
| Input Voltage | Single-phase AC 220V | Single-phase AC 220V | Single-phase AC 220V |
| Input Power | 350W | 350W | 350W |
| Cutting Type | Plasma / Flame | Plasma / Flame | Plasma / Flame |
| Drive System | Gear rack drive | Gear rack drive | Gear rack drive |
| Running Speed | 0-3000 mm/min | 0-3000 mm/min | 0-3000 mm/min |
| Flame Cutting Thickness | 5-60mm (Pierce) / 5-120mm (Edge) | 5-60mm / 5-120mm | 5-60mm / 5-120mm |
| Plasma Cutting Capacity | Depends on plasma source | Depends on plasma source | Depends on plasma source |
KEY FEATURES
-
Versatile Cutting: Supports both Plasma cutting (requires matching power supply) and Flame cutting (standard).
-
Customizable Length: The guideway length (effective Y-axis) can be lengthened according to user requirements.
-
Precision Drive: Equipped with 57 series stepping motors and gear rack drive for reliable operation precision (± 0.2mm/m).
-
Cost-Effective Table: Manufacturer provides drawings for the cutting table/support frame, allowing users to build their own to save shipping costs.
-
Gas Requirements: Supports Acetylene or Propane (Max 0.1Mpa) and Oxygen (Max 0.7Mpa) for flame cutting.

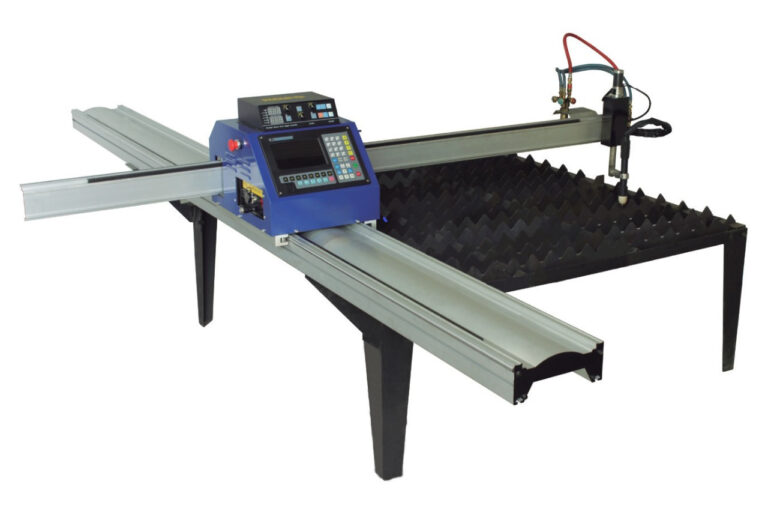

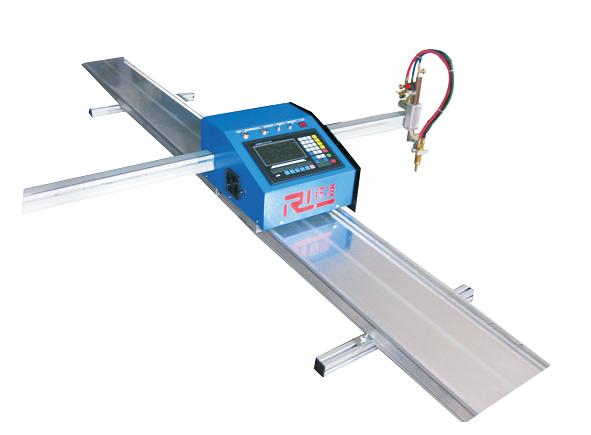

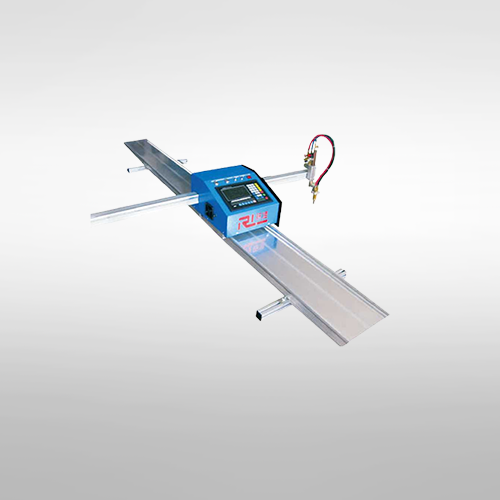

PRODUCT GALLERY
