Specialized ground rail laser cutting machine designed for extra-large metal sheets. Features a separated bed structure for unlimited length expansion. Available in sizes up to 3m x 13m and power options up to 20kW.
Fiber Laser Cutting Machines

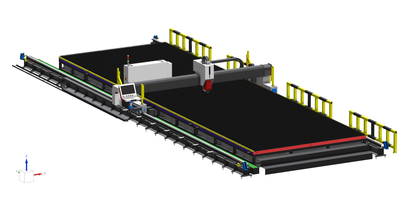

Large Format Ground Rail Fiber Laser Cutting Machine
CUTTING: 2500*10000mm - 3000*13000mm
POWER: 1500W - 20000W
TECHNICAL SPECIFICATIONS
PRECISION ENGINEERED
Detailed technical specifications and performance parameters for professional evaluation and comparison.
| SPECIFICATION | MODEL 1 | MODEL 2 | MODEL 3 |
|---|---|---|---|
| Model | RL10025-SG | RL12025-SG | RL13030-SG |
| Cutting Range | 2500mm*10000mm | 2500mm*12000mm | 3000mm*13000mm |
| Floor Space | 12000mm*3800mm*2000mm | 14000mm*3800mm*2000mm | 15000mm*4500mm*2000mm |
| Power Range | 1500W-20000W | 1500W-20000W | 1500W-20000W |
| Position Accuracy | ± 0.03mm/m | ± 0.03mm/m | ± 0.03mm/m |
| Repeat Accuracy | ± 0.03mm | ± 0.03mm | ± 0.03mm |
| Max Acceleration | 120m/min | 120m/min | 120m/min |
| Cutting Thickness | 1-80mm | 1-80mm | 1-80mm |
| Exchange Form | None (Optional) | None (Optional) | None (Optional) |
| Cutting Gas | Air/N2/O2 | Air/N2/O2 | Air/N2/O2 |
KEY FEATURES
-
Ultra-Large Format: Split-type modular bed design allows for customization of cutting length to meet oversized processing needs.
-
High Dynamics: Maximum acceleration of 120m/min ensures high efficiency even on large formats.
-
Thick Plate Processing: Capable of cutting up to 80mm thick metal with high-power laser options (up to 20kW).
-
Flexible Gas Options: Supports Compressed Air (1.6MP), Nitrogen (1.8MP), and Oxygen (0.8MP) for versatile cutting results.
PRODUCT GALLERY
VISUAL SHOWCASE
Detailed images showcasing design, construction quality, and operational features.
