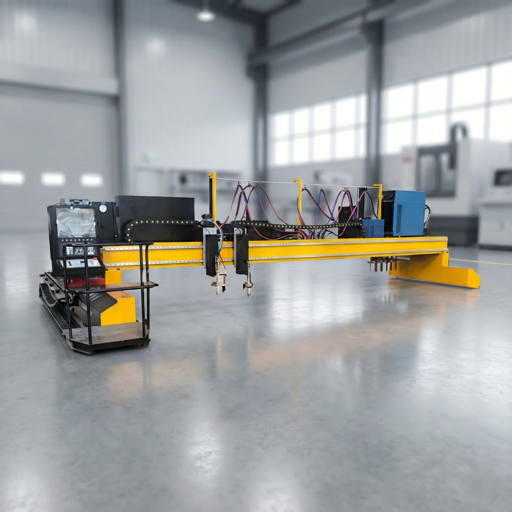

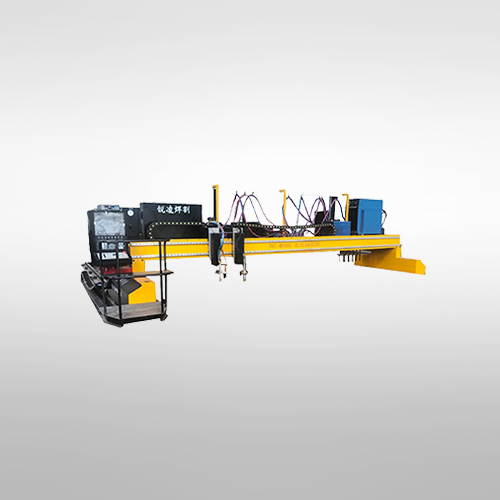

Top-of-the-line heavy duty gantry CNC cutting machine. Features a large 17-inch industrial screen and high-performance servo motor drivers. Designed for large-scale industrial applications with spans up to 6 meters and standard dual moving bodies.
CNC Plasma & Flame Cutting Machines
Heavy Duty Gantry CNC PlasmaFlame Cutting Machine
CUTTING: 3200*8000mm - 5100*8000mm
POWER: System 2.0KW / Plasma 380V
TECHNICAL SPECIFICATIONS
PRECISION ENGINEERED
Detailed technical specifications and performance parameters for professional evaluation and comparison.
| SPECIFICATION | MODEL 1 | MODEL 2 | MODEL 3 |
|---|---|---|---|
| Model | NC-4000 | NC-5000 | NC-6000 |
| Effective Cutting Range | 3200*8000 mm | 4100*8000 mm | 5100*8000 mm |
| CNC Span | 4000mm | 5000mm | 6000mm |
| CNC Length | 10000mm | 10000mm | 10000mm |
| Moving Bodies | 2 | 2 | 2 |
| Drive Type | Bilateral (Servo motor) | Bilateral (Servo motor) | Bilateral (Servo motor) |
| CNC System | 17-inch industrial screen | 17-inch industrial screen | 17-inch industrial screen |
| Plate Thickness | Flame 6-250mm / Plasma (Depends) | Flame 6-250mm / Plasma (Depends) | Flame 6-250mm / Plasma (Depends) |
| Cutting Speed | 20-8000 mm/min | 20-8000 mm/min | 20-8000 mm/min |
| Machine Bare Size | 4500*2000*1500 mm | 5500*2000*1500 mm | 6500*2000*1500 mm |
| Input Voltage | AC 220V / Plasma 380V | AC 220V / Plasma 380V | AC 220V / Plasma 380V |
KEY FEATURES
-
Industrial Grade Control: Equipped with a large 17-inch industrial control screen and Shanghai Jiaotong University CNC system for superior visibility and control.
-
Servo Drive System: Uses bilateral Servo motors and rack drive for maximum precision, speed, and stability under heavy loads.
-
Massive Capacity: Standard CNC length of 10 meters (customizable) and spans up to 6 meters, ideal for processing oversized metal plates.
-
Heavy Plate Cutting: Capable of flame cutting up to 250mm thick carbon steel.
-
Dual Operation: Comes standard with 2 moving bodies (Plasma + Flame) to double the processing output.
-
Advanced Configuration: Includes lifting pipeline tow chain, tool set, and support for optional capacitor/arc voltage height control systems.
PRODUCT GALLERY
VISUAL SHOWCASE
Detailed images showcasing design, construction quality, and operational features.
