3-in-1 handheld laser welding, cleaning, and cutting machine. Portable, efficient, and easy to operate. Available in 1kW to 3kW power options.
Laser Welding & Cleaning
Handheld Fiber Laser Welding Machine
CUTTING: Max Welding Depth: 8mm
POWER: 1000W - 3000W
TECHNICAL SPECIFICATIONS
PRECISION ENGINEERED
Detailed technical specifications and performance parameters for professional evaluation and comparison.
| SPECIFICATION | MODEL 1 | MODEL 2 | MODEL 3 | MODEL 4 |
|---|---|---|---|---|
| Model | RL-1000 | RL-1500 | RL-2000 | RL-3000 |
| Laser Power | 1000W | 1500W | 2000W | 3000W |
| Laser Wavelength | 1080nm | 1080nm | 1080nm | 1080nm |
| Laser Frequency | 50-5000Hz | 50-5000Hz | 50-5000Hz | 50-5000Hz |
| Power Regulation | 10-100% | 10-100% | 10-100% | 10-100% |
| Weld Depth (Stainless) | 2..0mm | 3.5mm | 6.0mm | 8.0mm |
| Weld Depth (Aluminum) | 1.0mm | 3.0mm | 5.0mm | 6.0mm |
| Weld Depth (Carbon) | 1.5mm | 3.5mm | 5.0mm | 6.0mm |
| Spot Size (Facula) | 0.8-1.6mm | 0.8-1.6mm | 0.8-1.6mm | 0.8-1.6mm |
| Power Consumption | 2KW | 5KW | 6KW | 9KW |
| Auto Wire Feeder | 0.8-1.2mm | 0.8-1.6mm | 0.8-1.6mm | 0.8-1.6mm |
| Cooling Mode | Water-cooling | Water-cooling | Water-cooling | Water-cooling |
KEY FEATURES
-
High Efficiency: faster welding speed than traditional welding.
-
Simple Operation: Easy to learn, no professional welder required.
-
Versatile: Supports welding, cleaning, and cutting functions.
-
Application Materials: Stainless steel, carbon steel, aluminum, copper, galvanized sheet, etc.
-
Cooling System: Integrated industrial water chiller ensuring continuous 24h operation.

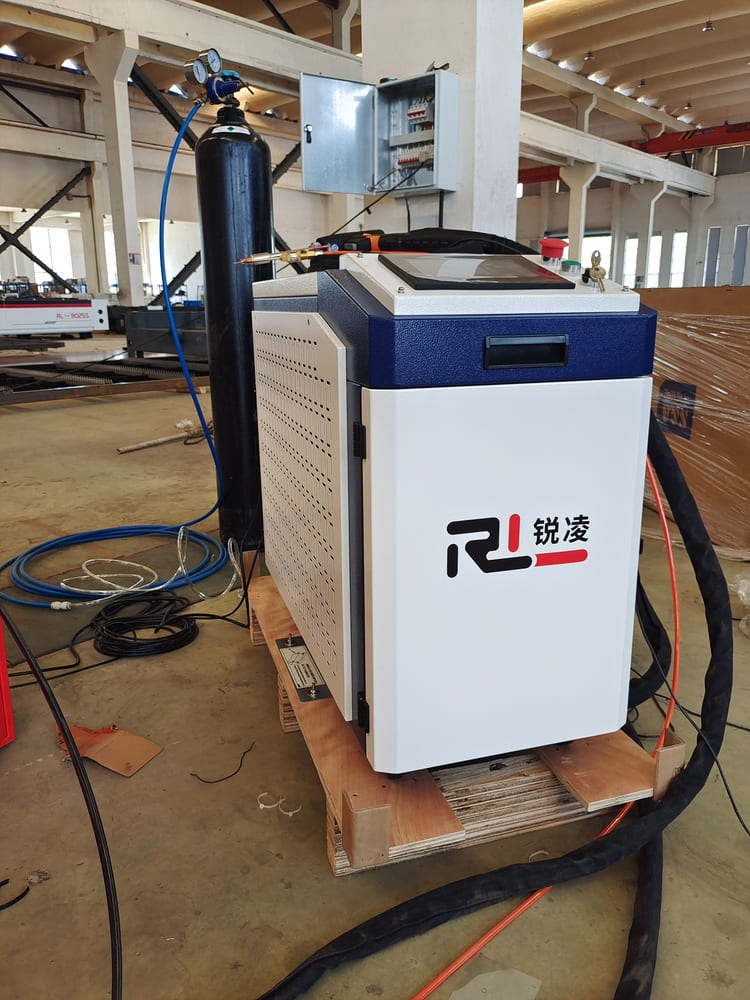

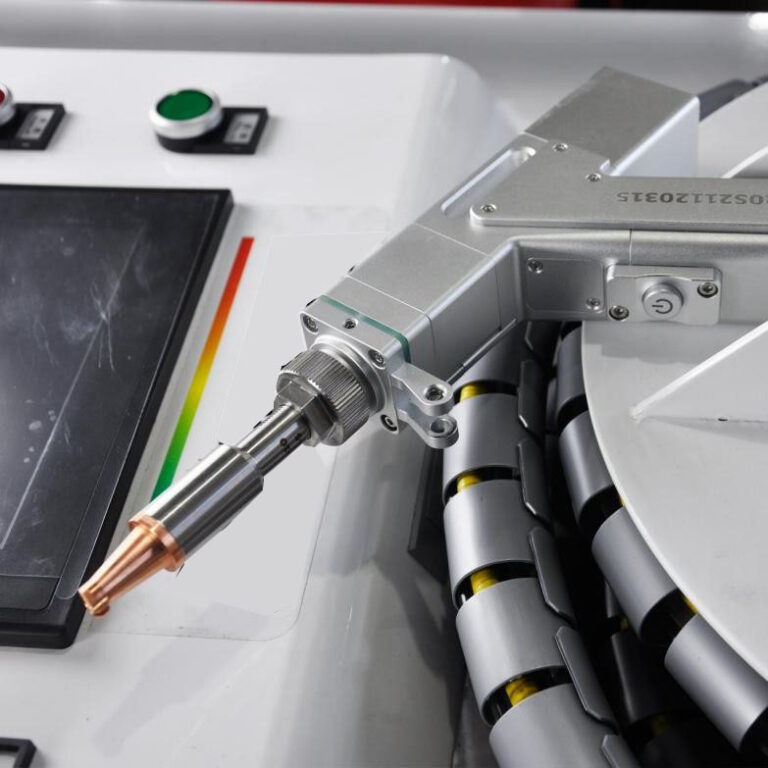

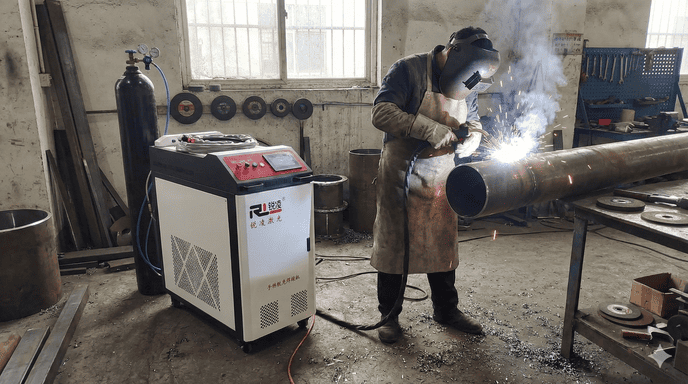

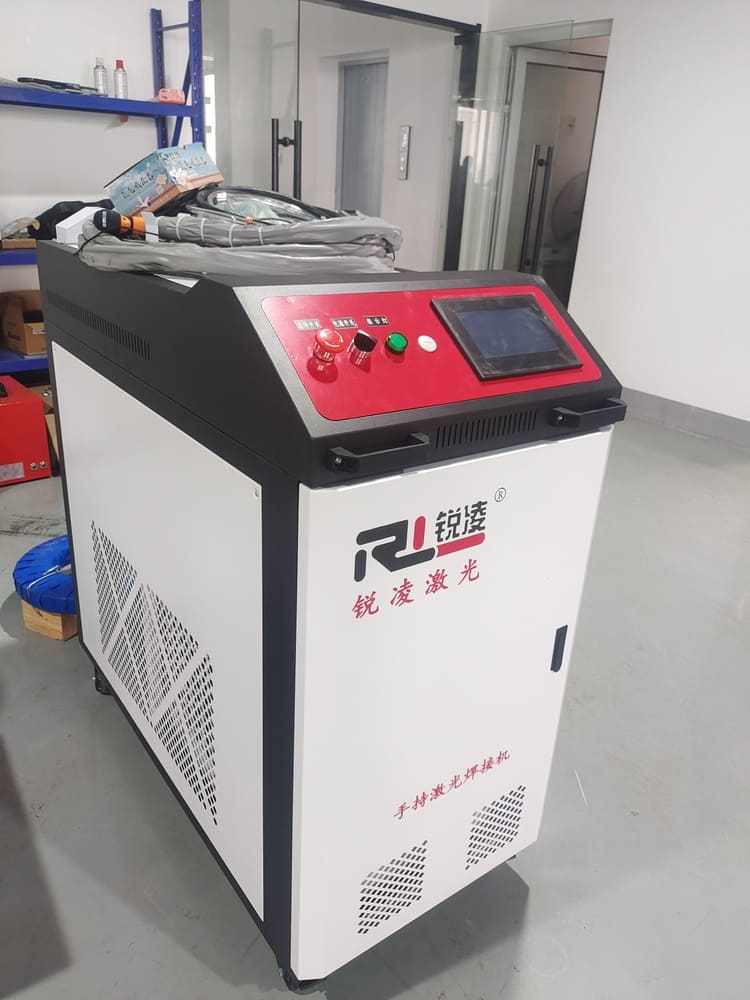

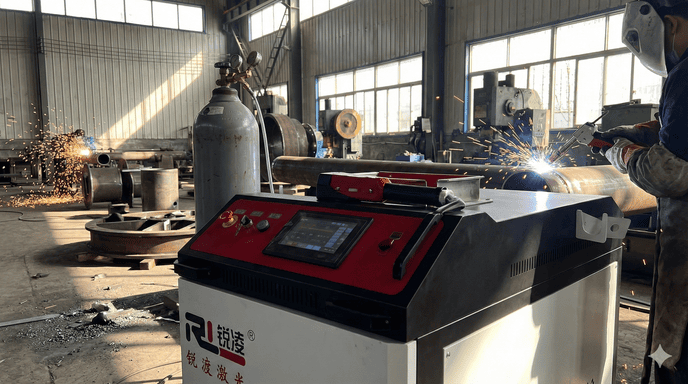

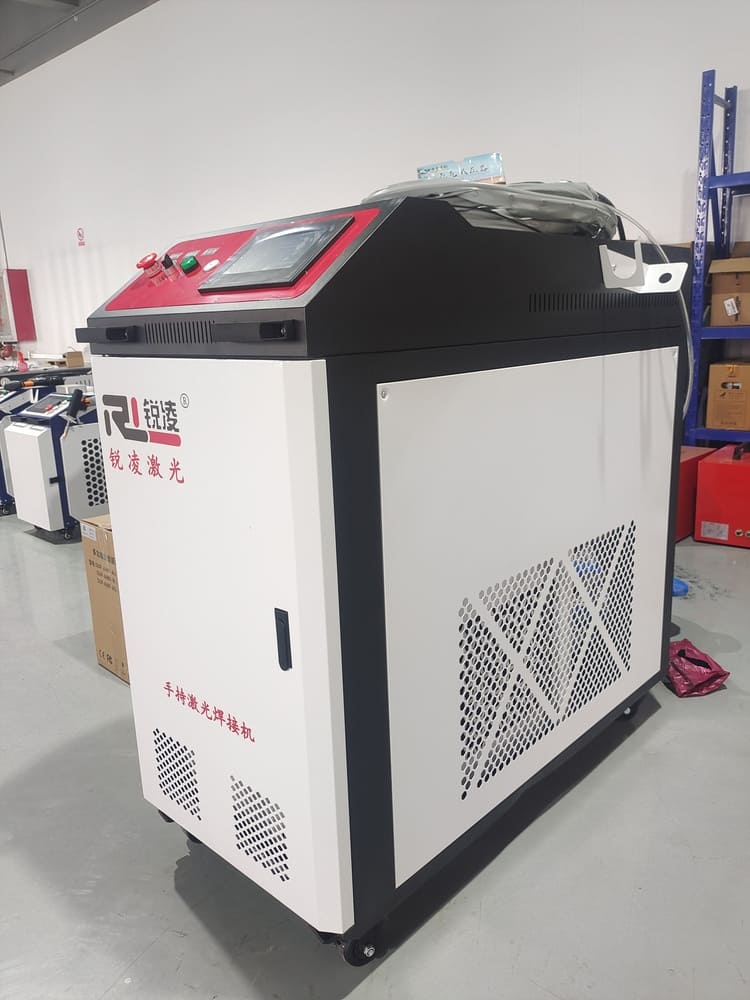

PRODUCT GALLERY
VISUAL SHOWCASE
Detailed images showcasing design, construction quality, and operational features.
