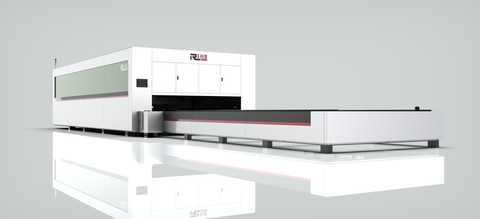

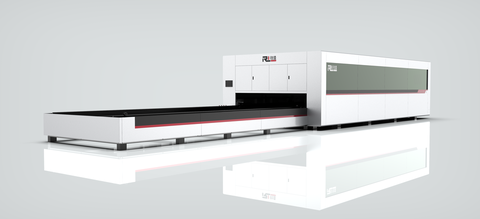

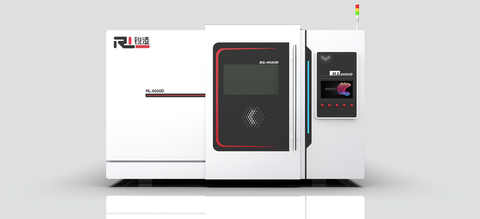

High-power fiber laser cutting machine with fully enclosed protective cover and dual exchange platforms. Designed for heavy-duty production, offering safety and high efficiency with power options up to 30kW.
Fiber Laser Cutting Machines
Fully Enclosed Exchange Platform Fiber Laser Cutter
CUTTING: 2000*6000mm - 2500*12000mm
POWER: 3000W - 30000W
TECHNICAL SPECIFICATIONS
PRECISION ENGINEERED
Detailed technical specifications and performance parameters for professional evaluation and comparison.
| SPECIFICATION | MODEL 1 | MODEL 2 | MODEL 3 | MODEL 4 |
|---|---|---|---|---|
| Model | RL6020-D | RL6025-D | RL8025-D | RL12025-D |
| Cutting Range | 2000*6000mm | 2500*6000mm | 2500*8000mm | 2500*12000mm |
| Power Range | 3kW-30kW | 3kW-30kW | 3kW-30kW | 3kW-30kW |
| Position Accuracy | ± 0.03mm/m | ± 0.03mm/m | ± 0.03mm/m | ± 0.03mm/m |
| Repeat Accuracy | ± 0.03mm | ± 0.03mm | ± 0.03mm | ± 0.03mm |
| Max Acceleration | 120m/min | 120m/min | 120m/min | 120m/min |
| Floor Space | 14500mm*3600mm*2300mm | 14500mm*4060mm*2300mm | 18500mm*4060mm*2300mm | 26500mm*4060mm*2300mm |
| Exchange Form | Dual Motor | Dual Motor | Dual Motor | Dual Motor |
| Cutting Thickness | 1-100mm | 1-100mm | 1-100mm | 1-100mm |
| Power Demand | 380V 50Hz/60Hz | 380V 50Hz/60Hz | 380V 50Hz/60Hz | 380V 50Hz/60Hz |
KEY FEATURES
-
Fully Enclosed Design: Provides maximum safety and pollution protection, CE standard compliant.
-
Dual Exchange Platforms: Separate dual motor horizontal switching allows loading/unloading while cutting, significantly improving efficiency.
-
High Power Capability: Supports up to 30,000W laser source for cutting thick plates (up to 100mm).
-
Heavy Duty Structure: Designed for large format sheets up to 2.5m x 12m.
PRODUCT GALLERY
VISUAL SHOWCASE
Detailed images showcasing design, construction quality, and operational features.
