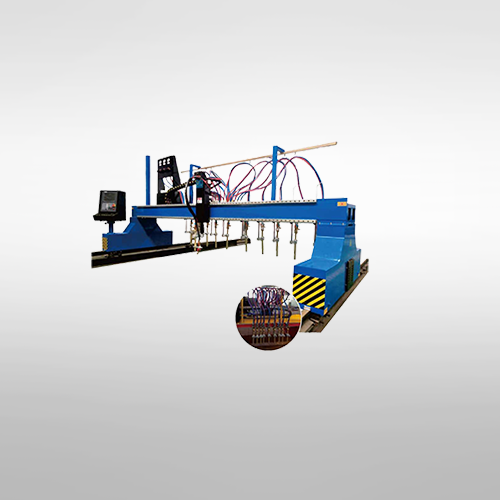

High-efficiency multi-torch flame cutting machine designed for mass production of straight metal strips. Built on the reliable NC series platform. Comes standard with 6 sets of cutting torches, significantly boosting productivity for steel structure fabrication.
CNC Plasma & Flame Cutting Machines
Flame Straightening Cutting Machine
CUTTING: Width 2500mm / Length 8000mm
POWER: AC 380V / AC 220V
TECHNICAL SPECIFICATIONS
PRECISION ENGINEERED
Detailed technical specifications and performance parameters for professional evaluation and comparison.
| SPECIFICATION | MODEL 1 | MODEL 2 |
|---|---|---|
| Model | ZTNC-3080 | |
| Gauge / Span | 3000 mm | |
| Effective Cutting Width | 2500 mm | |
| Track Length | 8000 mm | |
| Standard Torches | 6 sets | |
| Cutting Thickness | 5-100 mm | |
| Lifting Stroke | 200 mm | |
| Max Empty Speed | 5000 mm/min | |
| Fuselage Width | 3700 mm |
KEY FEATURES
-

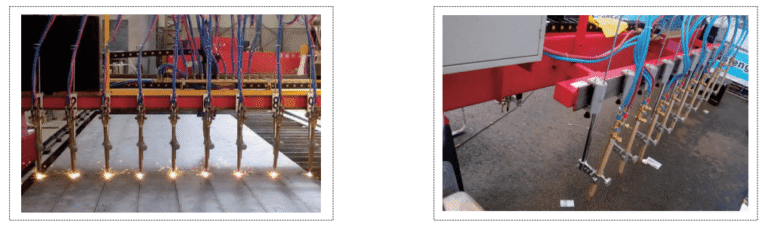

High Efficiency Production: Comes standard with 6 sets of flame cutting torches, allowing simultaneous cutting of multiple strips.
-
Customizable: The number of cutting torches can be customized according to user needs to match specific production requirements.
-
Reliable Structure: Width and length specifications are based on the proven NC series (Heavy/Standard Gantry) platform.
-
Flexible Power: Compatible with both AC 380V / 50Hz and AC 220V / 50Hz power inputs.
-
Large Capacity: Standard effective cutting width of 2500mm and track length of 8000mm (customizable).

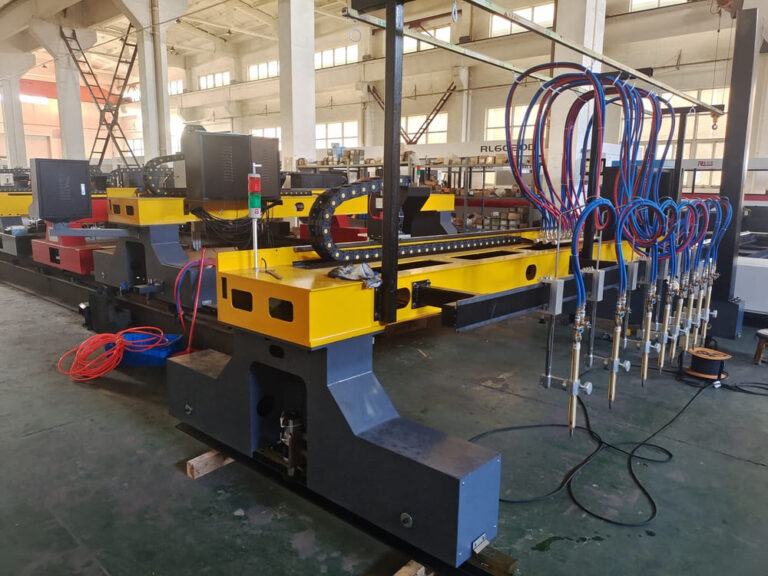

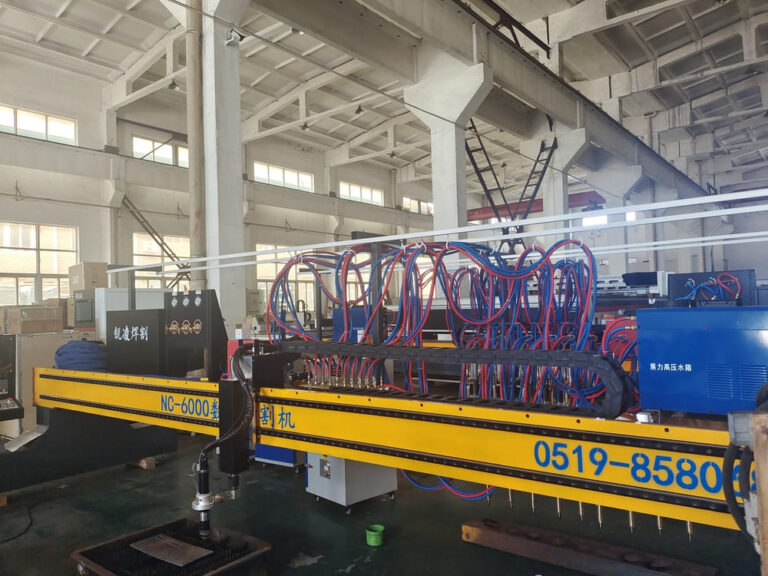

PRODUCT GALLERY
