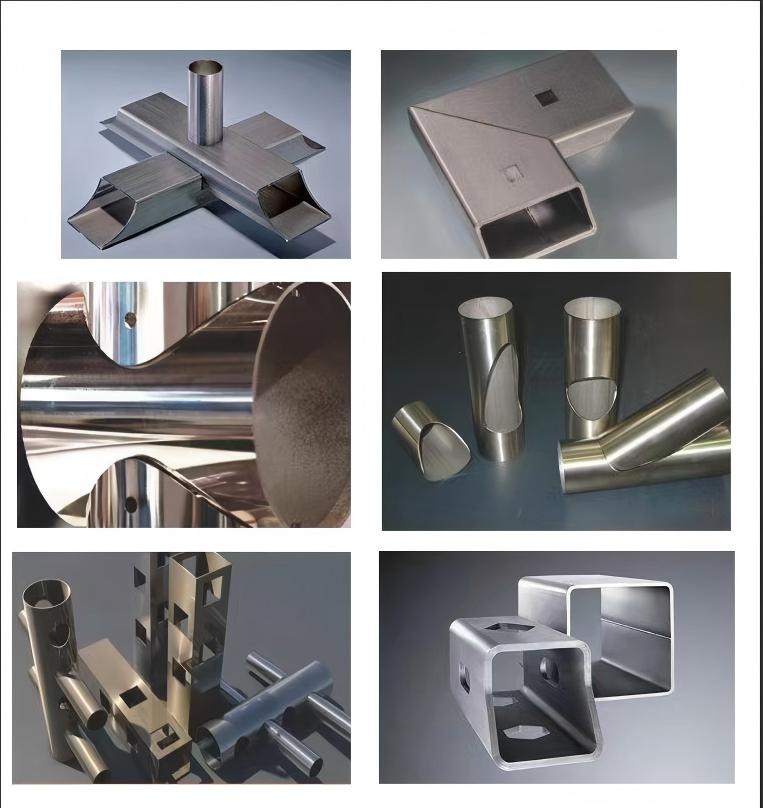

Professional CNC fiber laser tube cutting machine. Highly customizable with various chuck diameters (20mm-360mm) and bed lengths (up to 12m). Ideal for cutting round, square, rectangular, and oval tubes.
Fiber Laser Cutting Machines

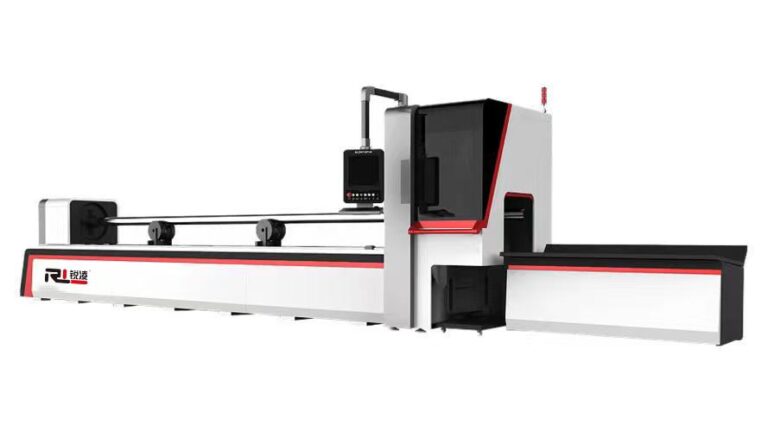

Fiber Laser Tube Cutting Machine
CUTTING: Tube Length: 4m-12m / Dia: 20-360mm
POWER: 1500W / 3000W / 6000W
TECHNICAL SPECIFICATIONS
PRECISION ENGINEERED
Detailed technical specifications and performance parameters for professional evaluation and comparison.
| SPECIFICATION | MODEL 1 | MODEL 2 |
|---|---|---|
| Laser Power | 1500W, 3000W, 6000W | |
| Laser Type | Fiber laser | |
| Processing Length | 4000mm, 6000mm, 9000mm, 12000mm | |
| Chuck Diameter (Optional) | 90, 130, 160, 220, 240, 290, 360 | |
| Positioning Accuracy | ± 0.05mm/m | |
| Repositioning Accuracy | ± 0.03mm | |
| Max Travel Speed | 90m/min | |
| Chuck Speed | 90r/min | |
| Max Acceleration | 0.8G | |
| Cutting Thickness | Depends on laser power |
KEY FEATURES
-
Highly Customizable: Tube processing length can be customized from 4000mm up to 12000mm to suit various industries.
-
Wide Range of Chucks: Supports a wide variety of pneumatic chuck diameters ranging from 90mm to 360mm.
-
High Dynamics: Features a maximum empty travel speed of 90m/min and 0.8G acceleration for efficient processing.
-
Precision Cutting: Machine tool positioning accuracy of ±0.05mm/m ensures high-quality results.

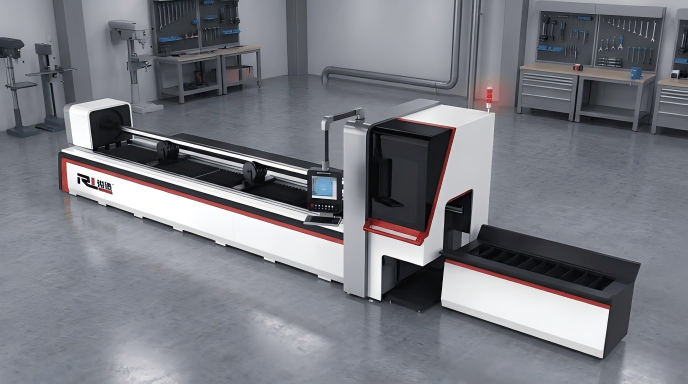

PRODUCT GALLERY
VISUAL SHOWCASE
Detailed images showcasing design, construction quality, and operational features.
