Cost-effective gantry CNC cutting solution designed for efficiency and stability. Features a bilateral drive system and a customizable track length. Available in spans from 2.5m to 3.5m, supporting both plasma and flame cutting.
CNC Plasma & Flame Cutting Machines
Economical Gantry CNC Cutting Machine
CUTTING: 2000*4000mm - 3000*4000mm
POWER: 1200W-2000W
TECHNICAL SPECIFICATIONS
PRECISION ENGINEERED
Detailed technical specifications and performance parameters for professional evaluation and comparison.
| SPECIFICATION | MODEL 1 | MODEL 2 | MODEL 3 |
|---|---|---|---|
| Model | SNC-2500 | SNC-3000 | SNC-3500 |
| Effective Cutting Range | 2000*4000 mm | 2500*4000 mm | 3000*4000 mm |
| CNC Span | 2500 mm | 3000 mm | 3500 mm |
| CNC Length | 5000 mm | 5000 mm | 5000 mm |
| Input Power | Stepping (1200W) / Servo (2000W) | Stepping (1200W) / Servo (2000W) | Stepping (1200W) / Servo (2000W) |
| Running Speed | 0-10000 mm/min | 0-10000 mm/min | 0-10000 mm/min |
| Cutting Speed | 20-6000 mm/min | 20-6000 mm/min | 20-6000 mm/min |
| Plate Thickness | Flame 6-150mm / Plasma (Depends on Power) | Flame 6-150mm / Plasma (Depends on Power) | Flame 6-150mm / Plasma (Depends on Power) |
| Drive Type | Bilateral drivers (Gear rack) | Bilateral drivers (Gear rack) | Bilateral drivers (Gear rack) |
| Lift Stroke | 200 mm | 200 mm | 200 mm |
| Machine Bare Size | 3230*1000*1000 | 3730*1000*1000 | 4230*1000*1000 |
KEY FEATURES
-
Economical & Efficient: The SNC series offers a high-performance gantry structure at an economical price point.
-
Flexible Configuration: Supports Plasma cutting (1 set) or Flame cutting (1 set), with options for up to 2 moving bodies.
-
Advanced Control: Equipped with Shanghai Jiaotong University CNC system and a 10-inch industrial control screen.
-
Robust Drive System: Bilateral gear rack drive ensures stable movement; Standard 86 series stepping motor + reducer (Servo motor optional).
-
Software Included: Comes standard with FASTCAM Small Expert Edition or starCAM nesting software.
-
Customizable: CNC length can be extended, and users can choose between Flame Capacitance or Plasma Arc Voltage height control.

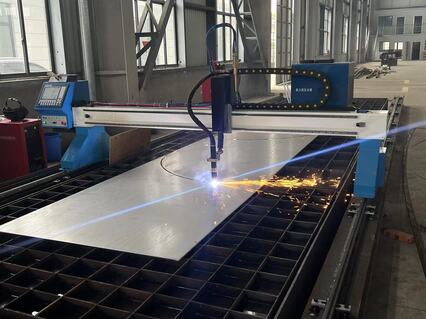

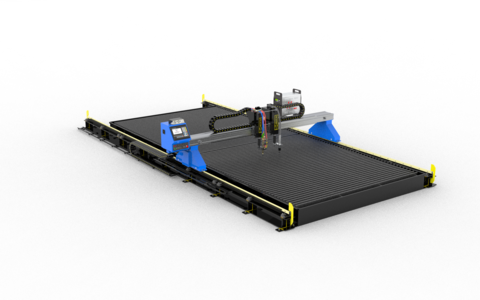

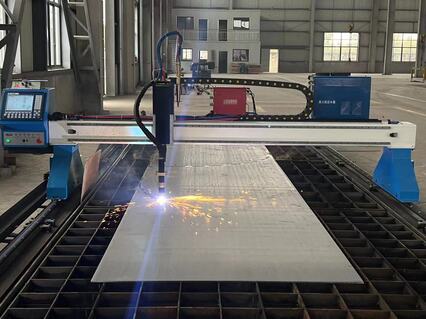

PRODUCT GALLERY
