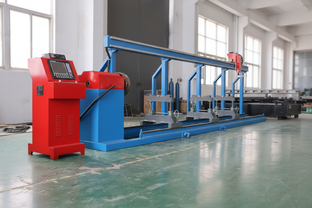

Specialized CNC intersecting line cutting machine for round pipes. Supports both flame and plasma cutting. Available in standard stepping motor version or high-performance servo version for larger diameter pipes (up to 500mm).
CNC Plasma & Flame Cutting Machines
CNC Circular Tube Cutting Machine
CUTTING: Diameter: Φ50 - Φ500mm
POWER: 800W - 1000W
TECHNICAL SPECIFICATIONS
PRECISION ENGINEERED
Detailed technical specifications and performance parameters for professional evaluation and comparison.
| SPECIFICATION | MODEL 1 | MODEL 2 |
|---|---|---|
| Model | GBNC3000 | GBNC6000 |
| Tube Diameter | Φ50 - Φ260mm | Φ50 - Φ500mm |
| Max Pipe Weight | ≤ 250kg | ≤ 1000kg |
| Motor Type | 86 Series 120 Stepping Motor | Panasonic Servo Motor |

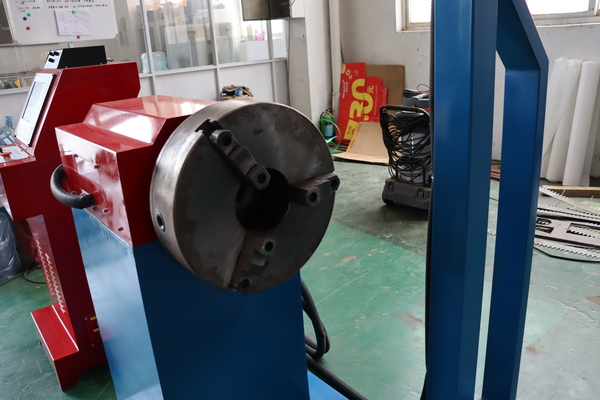

| Chuck/Disk Size | Φ250mm | Φ250mm + Connection plate |
| Input Power | 800W | 1000W |
| Cutting Type | Plasma / Flame | Plasma / Flame |
| Rotation Speed | 0-10rpm (Adjustable) | 0-15rpm (Adjustable) |
| CNC Control Axis | 3 axes two linkage | 3 axes two linkage |
| Operation Precision | ± 0.2mm/m | ± 0.2mm/m |
| Flame Cutting Thickness | 5-60mm (Pierce) / 5-120mm (Edge) | 5-60mm (Pierce) / 5-120mm (Edge) |
| Reduction Ratio | 1:21 (Variable) | 1:21 (Variable) |
KEY FEATURES
-
Specialized Tube Cutting: Designed for intersecting line cutting on round pipes, supporting complex cuts.
-
Dual Cutting Modes: Flame cutting (replaceable) is standard; Plasma cutting is available (requires matching plasma power supply).
-

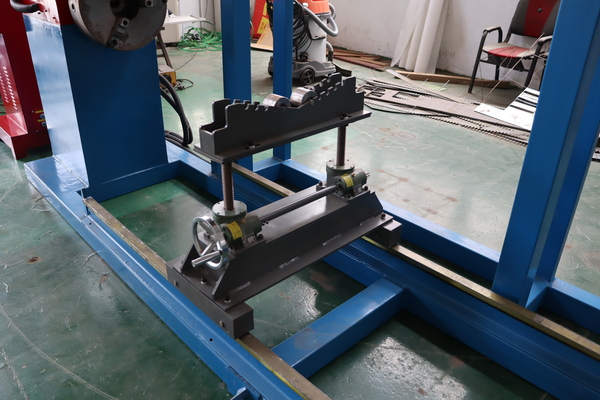

Flexible Customization: Pipe length can be customized according to requirements. Split design pipe cutting support frame provided.
-
High Load Capacity: The GBNC6000 model supports heavy pipes up to 1000kg and diameters up to 500mm.
-
Gas Requirements: Compatible with Acetylene or Propane (Max 0.1Mpa) and Oxygen (Max 0.7Mpa).
PRODUCT GALLERY
VISUAL SHOWCASE
Detailed images showcasing design, construction quality, and operational features.
