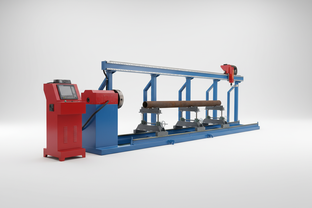

RL-WX500 Series CNC Pipe Profile Cutting Machine

The RL-WX500 Series CNC Pipe Profile Cutting Machine is a specialized 5-Axis equipment designed for complex tube intersection cutting (saddle cuts, holes, and slots). It supports a pipe diameter range of Φ48mm to 630mm. The machine features a unique Floating Chuck System that automatically compensates for pipe ovality and bending, ensuring high cutting accuracy without manual leveling. With its 5-axis linkage, it can perform AWS standard bevel cuts for welding preparation, making it essential for truss structure and pipeline engineering.

Key Features:

  • 5-Axis 4-Linkage Control: Capable of cutting complex intersecting lines, variable angle bevels, and “shrimp” elbow sections.
  • Floating Chuck Design: The chuck center height is adjustable and floating, allowing the machine to handle bent or non-round pipes effectively.
  • Seamless Software Integration: Compatible with Tekla and AutoCAD via RL AUTOPIPE software for direct G-code generation and 3D simulation.
  • High-Spec Components: Equipped with Japan Panasonic Servos, Taiwan Hiwin Linear Rails (HGH35/25), and a Huayuan LGK-300HD plasma source.
  • Beveling Capability: Supports Flame beveling (±60°) and Plasma beveling (±45°) for immediate welding preparation after cutting.
